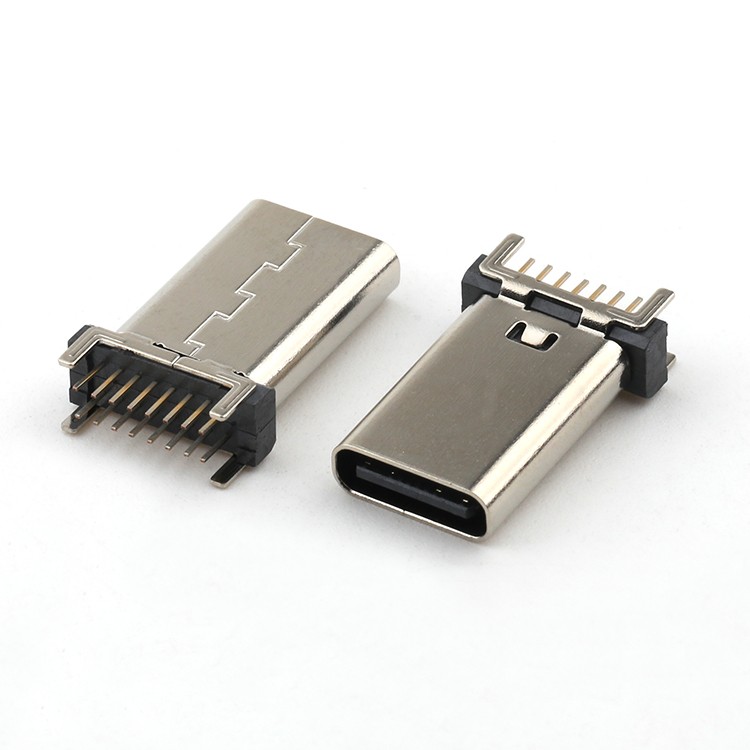

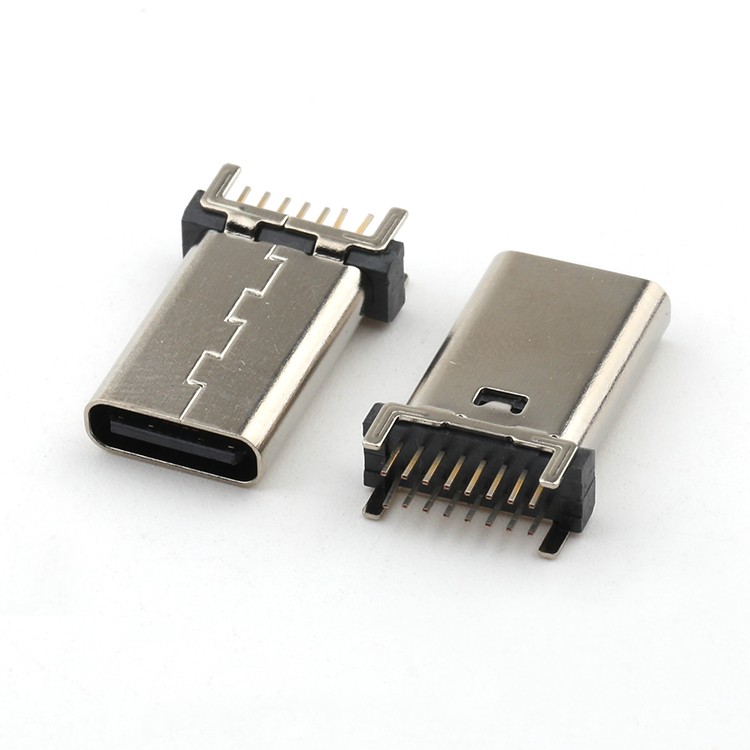

Vertical USB C 16Pin Female Connector H=17.5mm Dip Type USB C Female PCB Connector

  • Product Item：U06-CFXX5R-041-V3
  • Housing：LCP+30%G.F UL94V-0
  • Contact：Copper Alloy
  • Current Rating:5A
  • Dielectric Withstanding Voltage:100 V R.M.S.
    • USB C 16Pin Female Connector H=175mm Vertical Dip Type USB C Female PCB Connector
    Inquiry Send Email


    Datasheet

    Description

     We have different Height for this connector: 13.0 13.7 15.0 17.5

    U06-CFXX5R-041-V1 Height is 13.0mm

    U06-CFXX5R-041-V4 Height is 13.7mm

    U06-CFXX5R-041-V2 Height is 15.0mm

    U06-CFXX5R-041-V3 Height is 17.5mm
